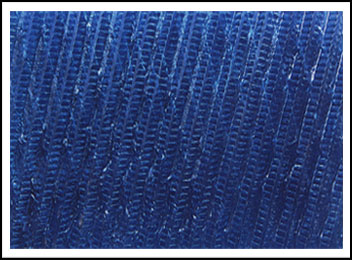

Pvc Fills
Manpower with vast specialized experience in film packing manufacturing is the back bone of the organization. We have with us persons who have been entirely responsible from concept to final product manufacturing. We have major time tested development that has been incorporated in standard size of PVC FILLS of:-
  • 12, 19, 27 mm flute size.

TECHNICAL DETAILS OF PVC FILLS

Type

N - 12

N - 19

N – 27

Flute Size.

12mm

19mm

27mm

Surface of exchange

240m²/m³

145m²/m³

110m²/m³

Minimum Water Flow

8m³/hr

5m³/hr

3m³/hr

DIMENSIONS
Length :- As Per Requirement - Any Size
Width :-
Height :-
Distance of Support :- 950mm.
Width of Support :- 50mm.
Material Thickness :- 0.30mm (Finished)
Weight :- 35g/ m³
Field of Application :- Cross Flow, Counter Flow-Mech induced & ND Towers.
Continuous Working Temp :- 60ºC
Maximum Face Velocity :- 3.0-3.5 m/sec
Drag Coefft :- 2.10

Double Edge Fold PVC fills 12 mm PVC fills 19/27 mm PVC fills
Double Edge Fold PVC Fills PVC Fills PVC Fills

This are the fills having edges folded so that the durability increases.

This are the standard size of pvc fills used in cooling tower we are manufacturing all the size which the client required.

This are the fills mostly used in ETP Plant. We are manufacturing all the size which the client required.
